Customer.io Destination

Customer.io lets you send automated email, push, SMS, letters, and webhooks based on your customer’s activities in your app or product. It makes conversion tracking, optimization and remarketing easier. The analytics.js Customer.io Destination is open-source. You can browse the code on GitHub.

This document was last updated on January 26, 2018. If you notice any gaps, out-dated information or want to leave some feedback to help improve the documentation, let us know!

Getting Started

Before you start, make sure Customer.io supports the source type and connection mode you’ve chosen to implement. You can learn more about connection modes here.

To connect Customer.io as a Segment destination:

1. Navigate to Connections > Destinations in Segment.
2. Click Add Destination.
3. Search for Customer.io and select it.
4. Click Configure Customer.io and choose which source to connect the destination to.

5. Enter your settings for these fields and click Save:

   Field	Details
   Destination Name	The name you want to identify the destination with.
   Connection Mode	You can choose between Cloud Mode and Device Mode. Segment recommends using Cloud Mode.
   How would you like to set up this destination?	You can choose to fill the settings manually or copy the settings from an existing destination instance.

6. Enter your API Key and Site ID on the Settings tab of your new destination. You can find these in your Customer.io account under Account Settings > API Credentials.
7. Click the toggle to activate the integration and start sending data to your Customer.io destination.

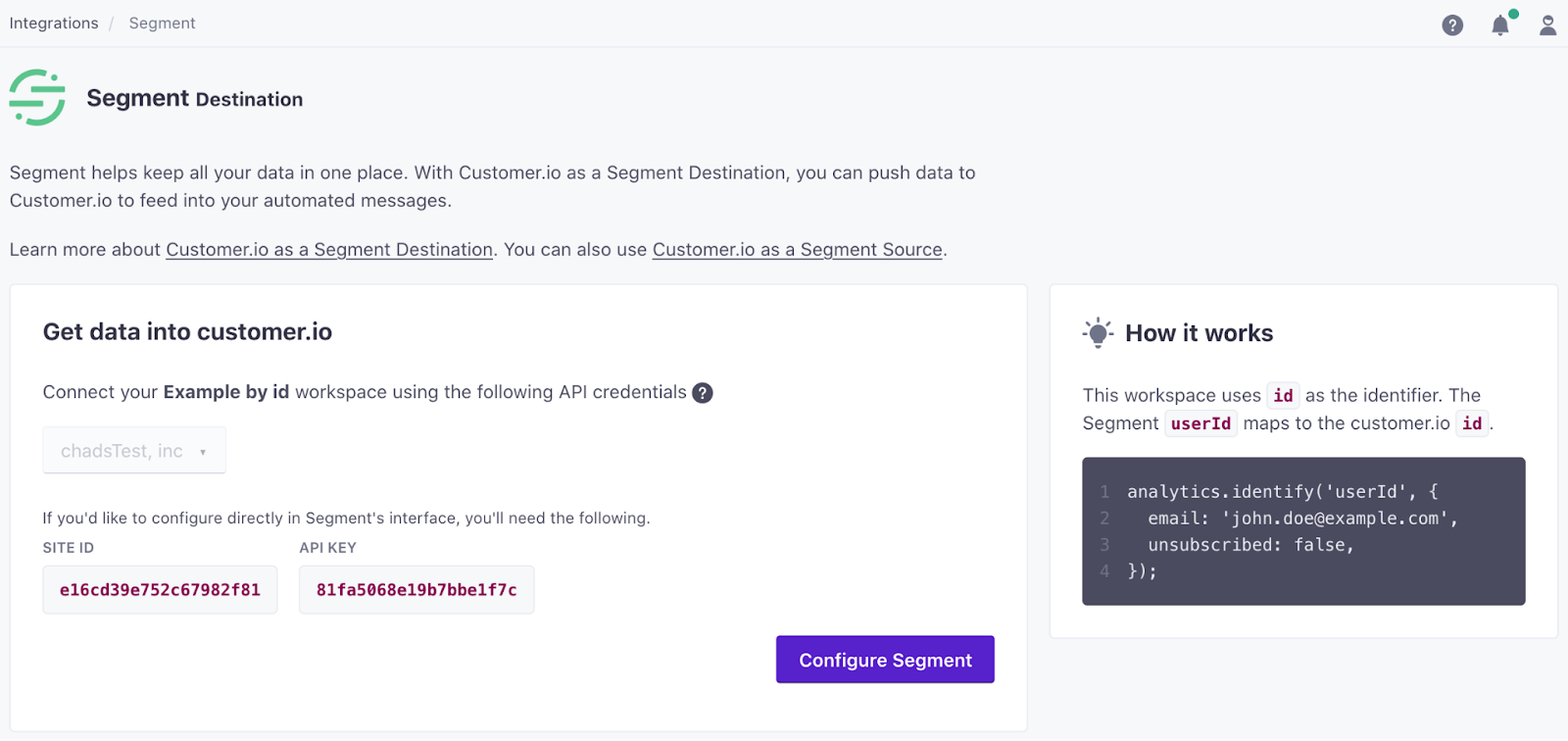

If you want to sync your settings directly from your Customer.io workspace instead, go to Settings > Integrations and find the Segment Destination integration. .

Page

If you’re not familiar with the Segment Specs, take a look to understand what the Page method does. An example call would look like:

analytics.page();

Page events send to Customer.io as a Page View event where names and properties are optional. In the Customer.io “Activity View”, the event will have “Activity Type” set to “Page View” and “Activity Name” set to the page name. If there is no page name, “Activity Name” defaults to the page URL.

Screen

If you’re not familiar with the Segment Specs, take a look to understand what the Screen method does. An example call would look like:

[[SEGAnalytics sharedAnalytics] screen:@"Home"];

Screen events send to Customer.io as a custom event. In the Customer.io “Activity View”, “Activity Type” is event and “Activity Value” sets to Viewed {screen name} Screen. For the earlier example the “Activity Value” will be Viewed Home Screen. If there is no screen name, then “Activity Value” will be Viewed Undefined Screen.

Identify

If you’re not familiar with the Segment Specs, take a look to understand what the Identify method does. An example call would look like:

analytics.identify('userId123', {
  email: 'john.doe@example.com'
});

An email address isn’t required by Customer.io. It’s only needed for people you intend to send email messages to (as opposed to SMS or push notifications). If you want an email to appear in the Customer.io “People View”, you must provide an email as a trait labeled email.

When you identify a new user, the user will subscribe to Customer.io. If the user is already subscribed, the user attributes will update according to the traits provided.

To unsubscribe a user, pass in user_id and unsubscribed (with a value of true) in an identify call. Be sure the user_id and email match the values in Customer.io, which you can find in the “Overview” section under the “Attributes” column within an individual user’s view in the Customer.io UI. Here is an example of how to unsubscribe a user:

analytics.identify('userId123', {
    email: 'john.doe@example.com',
    unsubscribed: true
  }
)

Track

If you’re not familiar with the Segment Specs, take a look to understand what the Track method does. An example call would look like:

analytics.track('Clicked Button');

Track events send to Customer.io as custom events. In the Customer.io “Activity View”, “Activity Type” sets to event and “Activity Name” sets to the event name.

Device Token Set up

Set device.token before you send the Application Installed, Application Uninstalled, or Application Opened events to Segment.

For that, you need to make the following calls:

• For Android, you need to make a call to putDeviceToken when Segment client initializes.
  • Read more here for adding tokens for Android devices
• For iOS, you need to make a call to segment.registeredForRemoteNotifications when you receive the didRegisterForRemoteNotificationsWithDeviceToken event.
  • Read more here for adding tokens for iOS devices

Application Installed

Application Installed events will add or update a device in the person’s Customer.io profile using this API endpoint. Note, you must pass a device token in your event payload using a context.device.token property. See more on Contextual properties here.

{
"action": "track",
"userId": "019mr8mf4r",
"event": "Application Installed",
"properties": {
  "version": "1.2.3",
  "build": 1234
},
"context": {
  "device": {
    "token": "ff15bc0c20c4aa6cd50854ff165fd265c838e5405bfeb9571066395b8c9da449",
    "type": "ios"
  }
}
}

## Application Opened Application Opened events will add or update a device in the person’s Customer.io profile using the same endpoint as above. If a device already exists, Customer.io will update its last_used_at timestamp. Again, make sure you pass a device token in your event payload using a context.device.token property. See more on Contextual properties.

{
"action": "track",
"userId": "019mr8mf4r",
"event": "Application Opened",
"properties": {
  "version": "1.2.3",
  "build": 1234
},
"context": {
  "device": {
    "token": "ff15bc0c20c4aa6cd50854ff165fd265c838e5405bfeb9571066395b8c9da449",
    "type": "ios"
  }
}
}

## Application Uninstalled Application Uninstalled events will remove the device from the person’s Customer.io profile using this API endpoint. Note, you must pass a device token in your event payload using a context.device.token property. See more on Contextual properties.

{
"action": "track",
"userId": "019mr8mf4r",
"event": "Application Uninstalled",
"properties": {
  "version": "1.2.3",
  "build": 1234
},
"context": {
  "device": {
    "token": "ff15bc0c20c4aa6cd50854ff165fd265c838e5405bfeb9571066395b8c9da449",
    "type": "ios"
  }
}
}

Sending Data from Customer.io

Customer.io supports sending email events to other tools on the Segment platform. These events send as track calls to the other destinations you’ve turned on.

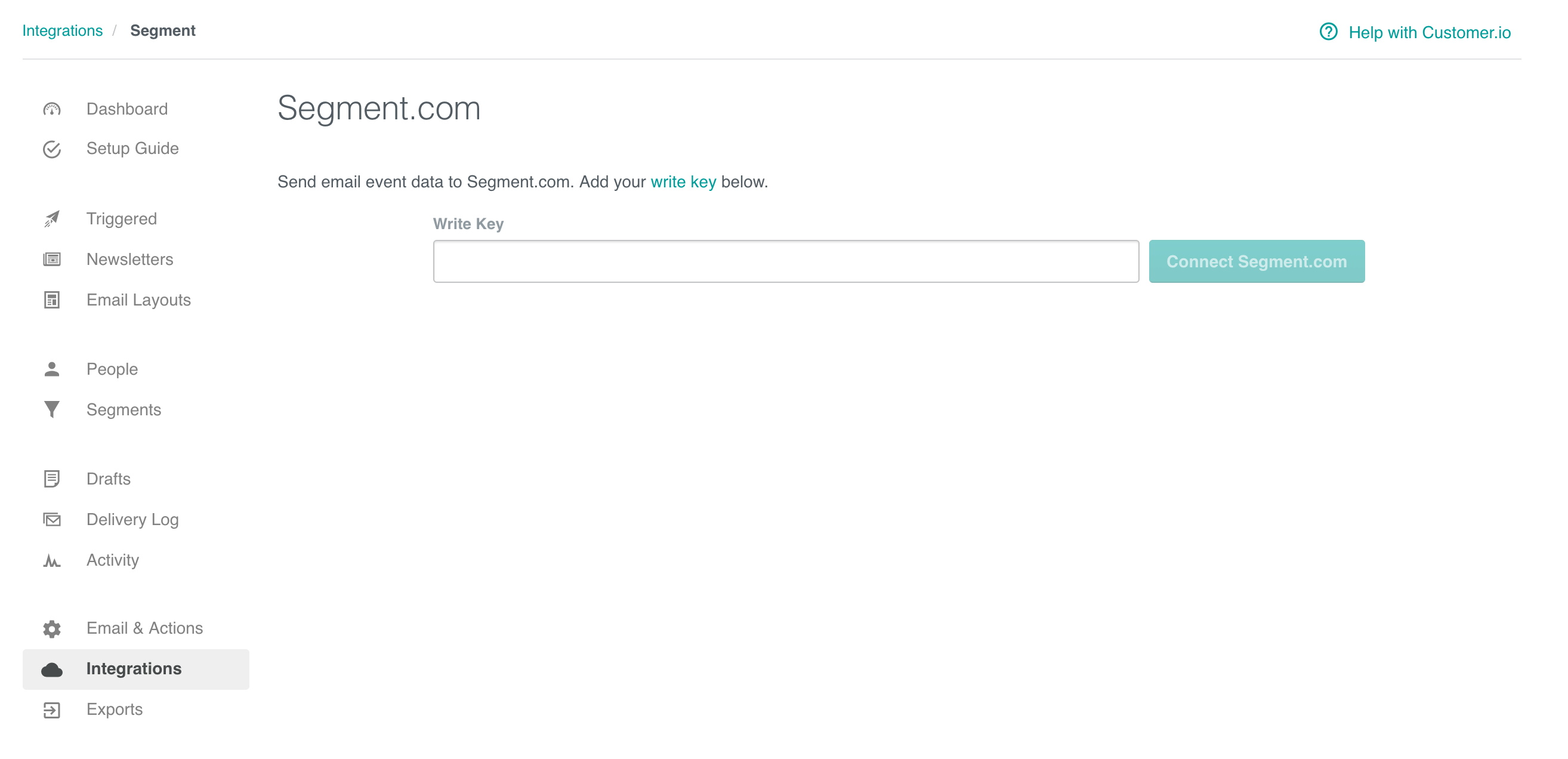

To enable this feature, go to the Account Settings in Customer.io and add your Segment write key:

Best Practices

Rate Limits

Customer.io has limits on the data collected by their API. To ensure your events arrive in Customer.io, make sure that you’re respecting the limits placed on the Customer.io API. If you’re using Segment’s HTTP API to send a batch of events to Customer.io at once, make sure you throttle the import to 100-200 requests per second.

Troubleshooting

No Events in Customer.io from the Browser

Remember that before Segment can send events to Customer.io from client-side Javascript, the current user must identify with their userId. The user’s email address is only used to identify them if that is the ID on record for them in Customer.io.

Page events not associated with user

Page events will associate to a user if the user has been previously identified in Customer.io. If you identify a user after making Page calls, the previous page events won’t associate to the user in Customer.io.

Personas

You can send computed traits and audiences generated using Segment Personas to this destination as a user property. To learn more about Personas, contact Segment for a demo.

For user-property destinations, an identify call sends to the destination for each user that’s added and removed. The property name is the snake_cased version of the audience name, with a true/false value to indicate membership. For example, when a user first completes an order in the last 30 days, Personas sends an Identify call with the property order_completed_last_30days: true. When the user no longer satisfies this condition (for example, it’s been more than 30 days since their last order), Personas sets that value to false.

When you first create an audience, Personas sends an Identify call for every user in that audience. Later audience syncs only send updates for users whose membership has changed since the last sync.

Settings

Segment lets you change these destination settings from the Segment app without having to touch any code.
